Real-Time Monitoring in Automated Container Cranes: Sensors, Data Pipelines and Fault Detection

Modern container terminals run on uptime. A single crane failure during a vessel call can cascade into berth delays, demurrage charges, and disrupted yard schedules that take days to recover from. The pressure this places on operations and maintenance teams has driven a fundamental shift in how port equipment is monitored — away from periodic inspection cycles and toward continuous, sensor-driven visibility across every system on every machine.

For engineers and operations managers evaluating port cranes with integrated monitoring capability, understanding what a well-instrumented crane actually looks like — and what the data architecture behind it enables — is increasingly a procurement requirement, not just a technical curiosity. This guide covers the sensor layer, data pipeline, and fault detection logic that define modern automated crane monitoring.

Why Cranes Are Ideal Candidates for Industrial IoT Instrumentation

A container crane is, in operational terms, a highly predictable machine running a highly repetitive cycle. An RTG crane at a busy terminal might complete 25 to 35 container moves per hour across a 20-hour operating day. That repetition makes cranes an unusually clean environment for condition monitoring: baseline behaviour is well-defined, deviations from baseline are meaningful, and the consequences of missing those deviations are quantifiable in dollars per hour of unplanned downtime.

This predictability is what makes cranes well-suited to the same monitoring and observability principles that IT operations teams apply to production infrastructure. The crane is effectively a stateful system executing known workloads — and like any monitored system, the value comes not from collecting data but from surfacing the right signals at the right time.

The Sensor Layer: What Gets Instrumented and Why

A fully instrumented automated crane carries sensors across four functional domains.

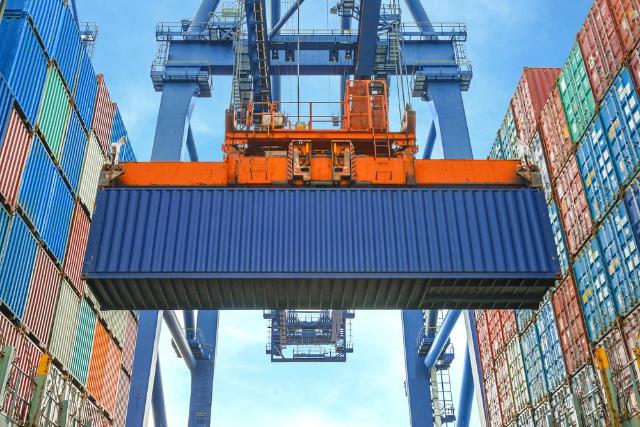

Load and structural monitoring covers the hoist system. Load cells at the spreader measure lifted weight in real time, confirming the load is within rated capacity and flagging asymmetric loads that indicate an off-centre pick or a damaged container corner casting. Rope tension sensors on each hoist drum provide secondary confirmation and detect the early signature of rope fatigue — a gradual change in tension distribution across strands that precedes visible wire breaks.

Motion and positioning is handled by a combination of encoders and laser distance measurement systems. Absolute encoders on the hoist, trolley, and gantry drives give the control system precise position data throughout each move cycle. Laser rangefinders at the spreader corners measure the distance to the container surface below, enabling automatic spreader alignment during lowering. On RTG cranes specifically, wheel-mounted encoders and steering angle sensors feed the lane guidance system that maintains consistent travel alignment in the container yard.

Drivetrain and electrical health monitoring covers the variable frequency drives, motors, gearboxes, and brakes that convert electrical power into controlled movement. Current and voltage monitoring on each VFD identifies thermal loading before it reaches trip thresholds. Vibration sensors on gearbox housings detect the early onset of bearing wear or gear mesh deterioration — typically 200 to 400 operating hours before the failure becomes audible or causes performance degradation. Brake pad wear sensors on the hoist and travel brakes provide wear measurement without requiring manual inspection.

Environmental and structural sensors round out the instrumentation. Wind speed anemometers on the crane top deck feed directly into the control system, triggering automatic hoist and travel speed limits when conditions exceed safe operating thresholds. Inclination sensors on the main structure detect settlement or rail irregularities that cause the crane to operate out of level. On steel structures exposed to marine environments, strain gauges at high-stress weld locations provide fatigue cycle accumulation data that feeds directly into maintenance scheduling.

The Data Pipeline: From Sensor to Decision

Raw sensor data has no operational value until it is structured, contextualised, and delivered to the people and systems that can act on it. The data pipeline in a modern crane monitoring system typically moves through four stages.

Edge processing happens at the crane level, within the PLC or a dedicated edge computing module mounted in the electrical room. At this stage, high-frequency sensor readings are filtered, timestamped, and reduced to meaningful events — a vibration reading is not logged as a raw waveform but as a derived value representing bearing condition index against baseline. This reduces the volume of data transmitted without losing diagnostic resolution.

Local aggregation occurs at the terminal operations level, typically through a SCADA system or equipment management platform that collects data from all cranes in the fleet. At this layer, individual crane data becomes fleet data — allowing cross-machine comparisons, shift-based performance tracking, and correlation between crane behaviour and throughput metrics.

Remote transmission enables manufacturer support teams and specialist condition monitoring services to access crane data without site visits. Encrypted VPN connections or cloud-based data platforms allow remote engineers to review trend data, validate diagnostic conclusions, and support maintenance decisions in real time.

Alerting and escalation is the operational output of the pipeline. Alert logic at each layer defines which conditions generate notifications, at what severity, and to which recipients — control room operators, maintenance supervisors, or engineering teams. Effective alert design filters out noise while ensuring critical signals — a hoist rope tension anomaly, a VFD overcurrent event, a structural inclination change — reach the right person within seconds.

Fault Detection: Pattern Recognition Over Threshold Monitoring

Early crane monitoring systems were threshold-based: a sensor reading that exceeded a defined limit triggered an alarm. This approach catches acute failures but misses the gradual degradation patterns that precede most serious crane faults.

Modern fault detection applies pattern recognition across time-series data rather than evaluating individual readings in isolation. Bearing wear, for example, produces a characteristic progression in vibration frequency spectrum — specific frequency components amplify in a predictable sequence as damage propagates through the bearing race. A monitoring system trained on this pattern can identify bearing degradation 300 to 500 hours before it reaches the severity that would trigger a threshold-based alarm, giving maintenance teams a planning window rather than an emergency response requirement.

Similarly, hoist rope condition is monitored not by a single tension reading but by the relationship between tension readings across multiple lift cycles under comparable load conditions. A rope that is degrading shows increasing tension variance at the same load — a signal invisible to threshold monitoring but detectable by trend analysis across the operational dataset.

HT Crane: Monitoring Integration in Port Crane Design

Equipment manufacturers that build monitoring capability into the crane from the design stage — rather than retrofitting sensors to existing machines — produce systems where the sensor placement, data architecture, and control system integration are coherent rather than assembled from separate components.

HT Crane designs and manufactures RTG cranes, RMG cranes, ship-to-shore cranes, and portal harbour cranes with integrated electrical control systems built around PLC platforms. Their crane control architecture supports real-time data acquisition across hoist, trolley, gantry, and auxiliary systems, with remote technical support capability built into the base specification for export equipment. For terminals evaluating automated or semi-automated crane solutions, the monitoring and control integration is part of the delivered system rather than a post-installation addition.

What Operations Teams Should Evaluate

For terminal operators and equipment managers assessing crane monitoring capability during procurement, the relevant evaluation criteria are:

Sensor coverage completeness. Does the monitoring system cover load, motion, drivetrain, and structural domains, or only a subset? Gaps in sensor coverage become gaps in diagnostic capability.

Edge processing architecture. Does the system reduce data at the crane level or transmit raw sensor streams? Edge processing reduces bandwidth requirements and improves response time for time-critical alerts.

Alert logic configurability. Can alert thresholds and escalation paths be configured to match the terminal's operational structure, or are they fixed at the factory setting?

Remote access capability. Can the manufacturer's engineering team access crane data to support fault diagnosis without a site visit? For remotely located terminals, this capability directly affects the cost and speed of technical support.

Data retention and export. Can historical sensor data be exported for maintenance planning, insurance documentation, or integration with third-party asset management platforms?

These questions are as relevant to crane procurement as questions about lifting capacity or span — because the monitoring system determines how much of the crane's rated service life is actually recoverable in practice.
