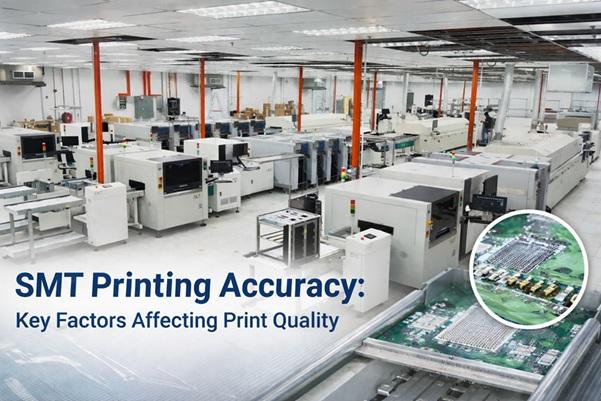

SMT Printing Accuracy: Key Factors Affecting Print Quality
In the fast-paced world of electronics manufacturing, Surface-Mount Technology (SMT) stands as the backbone of modern assembly lines, driving the production of everything from the latest smartphones to cutting-edge medical devices. However, beneath the surface of these high-performance products lies a critical process that can make or break their success: solder paste printing. While it may seem like a simple step, the precision required in this phase directly determines the quality and reliability of the final product. One small misstep in paste alignment can lead to disastrous consequences—solder bridges, cold joints, and defective products that can ruin entire batches. With today’s demand for flawless, high-yield production, achieving the perfect solder paste print has never been more crucial. In this article, we delve deep into the key factors that influence SMT printing accuracy, uncover the hidden challenges manufacturers face, and explore actionable strategies to optimize this vital process for higher efficiency, fewer defects, and ultimately, better results. Let’s unlock the secrets to perfecting your SMT printing process and elevating your production line to the next level.
1. Why SMT Printing Accuracy Matters
Solder paste printing is the first step in the SMT process and sets the foundation for all subsequent steps. The quality of the solder paste deposit directly affects the performance and reliability of the electronic component. If the paste is unevenly distributed or incorrectly applied, it can result in poor solder joints, leading to potential failures in the product. Accurate printing ensures that the right amount of paste is deposited on each pad, enabling consistent, high-quality solder joints that improve the overall performance and longevity of the assembly.
2. Understanding the Key Factors in SMT Printing
SMT printing accuracy refers to how well the solder paste is applied to the PCB pads in terms of alignment, volume, and consistency. The key factors that influence printing accuracy include the alignment of the stencil to the PCB, the printing speed, the pressure applied during the printing process, and the quality of the solder paste itself. Understanding how each of these factors contributes to the overall print quality can help in identifying potential issues early in the production process.
3. The Role of Solder Paste in Print Quality
The type and quality of solder paste used in SMT printing can greatly impact print accuracy. Factors such as viscosity, particle size, and flux content all play a role in how the paste behaves during the printing process. High-viscosity pastes tend to be more challenging to print accurately, especially for fine-pitch components. Thicker pastes can result in inconsistent paste deposits, while thinner pastes might not adhere as well to the PCB. Ensuring that the solder paste is consistent, properly mixed, and stored at the correct temperature is essential to achieving the best print quality.
For the best solder paste printers, you can explore I.C.T's high-performance solder paste printers that ensure precision and consistency in every print.
4. The Impact of Printer Settings on Print Accuracy
Printer settings are another significant factor in ensuring print accuracy. The pressure applied to the stencil, the speed at which the paste is printed, and the alignment of the stencil all contribute to the quality of the print. Excessive pressure can lead to paste smearing, while insufficient pressure can result in inadequate paste deposition. The printing speed must also be optimized—too fast and the paste might not have enough time to properly adhere to the pads, too slow and it could cause clogging or inconsistent application. Regularly calibrating the printer and adjusting these settings based on the specific PCB and component requirements is crucial for high-quality prints.
5. Environmental Factors: Cleanliness and Temperature
The environment in which the printing process takes place can have a surprising impact on print quality. Dust, humidity, and temperature fluctuations can all contribute to inconsistencies in solder paste printing. Dust particles can contaminate the paste, leading to blockages in the stencil or improper paste application. High humidity can cause the paste to dry out or affect its viscosity, while temperature fluctuations can cause the paste to harden or become too runny. Maintaining a clean, controlled environment with consistent temperature and humidity levels is key to achieving consistent, high-quality prints.
6. Machine Calibration and Maintenance
Regular calibration and maintenance of the printing machine are essential for achieving accurate prints. Over time, the printing machine can experience wear and tear, which can lead to misalignments or inconsistent pressure distribution. Misalignment between the stencil and PCB can cause off-center paste deposits, while improper pressure settings can result in too much or too little paste being applied. To ensure consistent print accuracy, it is essential to perform routine checks on the equipment, clean the machine regularly, and recalibrate the settings as needed.
7. Advanced Techniques for Improving Print Accuracy
There are several advanced techniques that can help improve SMT printing accuracy. One such technique is the use of closed-loop feedback systems, which monitor the print process in real-time and make automatic adjustments to ensure optimal paste deposition. Additionally, automated optical inspection (AOI) systems can be used to inspect the quality of printed solder paste and identify defects such as insufficient or excessive paste. High-precision stencils with finer apertures can also be employed for more accurate paste placement, particularly for fine-pitch components. Investing in these technologies can significantly reduce defects and improve the overall quality of the SMT process.
In conclusion, SMT printing accuracy is a vital factor that affects the overall quality and reliability of electronic assemblies. By understanding the various factors that influence print quality, such as solder paste consistency, printer settings, environmental conditions, and machine maintenance, manufacturers can ensure high-quality prints and reduce defects in their production lines. With the right techniques, tools, and regular maintenance, it’s possible to achieve precise, consistent printing that leads to higher yields, fewer defects, and more reliable products. For more information on precision printing solutions, check out I.C.T's comprehensive range of products designed to enhance print accuracy and overall production efficiency.
